Solving Differential Equations

Governing Equations

The governing equations for solving geodynamical problems—neglecting adiabatic effects and assuming only radioactive heat sources—are given by the conservation laws of

Momentum

\[\begin{equation} \rho \left(\frac{\partial{v_{i}}}{\partial{t}} + v_{j}\frac{\partial{v_{i}}}{\partial{x_{j}}}\right) = -\frac{\partial{P}}{\partial{x_{i}}} + \frac{\tau_{ij}}{\partial{x_j}} + \rho g_{i}, \end{equation}\]

where $\rho$ is the density [kg/m³], $v_i$ is the velocity in the $i$-th direction [m/s], $t$ is time [s], $\partial/\partial{t}$ is the time derivative, $\partial/\partial x_i$ is a directional derivative in $i$, $P$ the total pressure [Pa], $\tau_{ij}$ is the deviatoric stress tensor [Pa], and $\boldsymbol{g}$ is the gravitational acceleration vector [m/s²].

Energy

\[\begin{equation} \rho c_p \left(\frac{\partial T}{\partial t} + v_j\frac{\partial{T}}{\partial{x_j}}\right) = -\frac{\partial q_i}{\partial x_i} + \rho H, \end{equation}\]

where $c_p$ is the specific heat capacity [J/kg/K], $T$ is temperature [K], $q_i$ is the heat flux [W/m²] in direction $i$, $H$ is the internal heat production per unit mass [W/kg].

Mass

\[\begin{equation} \frac{\partial{v_i}}{\partial{x_i}} = 0. \end{equation}\]

Repeated indices imply summation.

Ordinary and partial differential equations (ODEs and PDEs) can be solved through various approaches—occasionally analytically, but more commonly numerically due to their inherent complexity. Among numerical methods, prominent techniques include integral-based methods, such as the finite element and spectral methods, as well as the finite difference method.

The GeoModBox.jl framework employs the finite difference method. While each numerical approach has its own strengths and limitations, the choice often depends on the user's familiarity and comfort with the method. Nonetheless, the finite difference method is relatively straightforward and pedagogically advantageous, as its discretized form closely resembles the original differential equations. Furthermore, it is computationally efficient, making it well-suited for performance-critical applications.

In general, the finite difference method aims to approximate differential operators using finite differences derived from a Taylor series expansion.

Mathematical Background

In infinitesimal calculus,the interest lies in how a quantity, such as $u$, changes in response to a small variation in the variable $x$. If $u$ has a value of $u_0$ at position $x_0$ and changes to $u_0 + \delta{u}$ when $x$ changes to x_0 + \delta{x}, the incremental change can be described as follows:

\[\begin{equation} \delta{u} = \frac{\delta{u}}{\delta{x}}\left(x_0\right)\delta{x}. \end{equation}\]

Here, $\delta$ denotes a small but finite change. When $\delta{x}$ decreases asymptotically toward 0 near $x_0$, the partial derivative is obtained:

\[\begin{equation} \lim_{\delta \to 0} \frac{\delta{u}}{\delta{x}}\left(x_0\right) = \frac{\partial{u}}{\partial{x}}. \end{equation}\]

This limit is valid provided there are no discontinuities or abrupt changes in $u$ with respect to $x$.

The finite difference formulation permits the utilization of arithmetic (computational) operators to ascertain the derivatives. Finite difference formulations are predicated on a Taylor series expansion with truncation to a certain order. In general, a Taylor series expansion is given as

\[\begin{equation} u(x) = u(x_0)+\frac{\partial{u}}{\partial{x}}(x_0)(x-x_0)+\frac{\partial^2{u}}{\partial{x^2}}(x_0)\frac{\left(x-x_0\right)^2}{2!}+\frac{\partial^3{u}}{\partial{x^3}}(x_0)\frac{\left(x-x_0\right)^3}{3!}+ \dots + +\frac{\partial^n{u}}{\partial{x^n}}(x_0)\frac{\left(x-x_0\right)^n}{n!}, \end{equation}\]

where $\frac{\partial^2{u}}{\partial{x^2}}$ is the second derivative and $n!$ describes the factorial, that is:

\[\begin{equation} n! = 1 \times 2 \times 3 \times \dots \times n. \end{equation}\]

Rearranging the Taylor series extension and neglecting higher order terms one obtains an approximation of the partial derivatives using finite difference formulations as

\[\begin{equation} \frac{\partial{u}}{\partial{x}}(x_0) = \frac{u(x_0)-u(x)}{\left(x-x_0\right)} + \cal{O}\left(\Delta{x}\right) = \frac{u(x_0)-u(x_0+\Delta{x})}{\Delta{x}} + \cal{O}\left(\Delta{x}\right), \end{equation}\]

where $\cal{O}$ indicates the truncation error of the approximation (here, $\Delta{x}$), and the formulation is, by definition, only accurate up to the first order.

The partial derivatives can be approximated via different finite differences as

\[\begin{equation}\begin{split} \textrm{forward difference} &: \quad \frac{\partial{u}}{\partial{x}}\vert_{i,j} = \frac{u(x+\Delta{x})-u(x)}{\Delta{x}} + \cal{O}\left(\Delta{x}\right) = \frac{u_{i+1,j}-u_{i,j}}{\Delta{x}} + \cal{O}\left(\Delta{x}\right) \\ \newline \textrm{central difference} &: \quad \frac{\partial{u}}{\partial{x}}\vert_{i,j} = \frac{u(x+\Delta{x})-u(x-\Delta{x})}{2\Delta{x}} + \cal{O}\left(\Delta{x^2}\right) = \frac{u_{i+1,j}-u_{i-1,j}}{2\Delta{x}} + \cal{O}\left(\Delta{x^2}\right) \\ \newline \textrm{backward difference} &: \quad \frac{\partial{u}}{\partial{x}}\vert_{i,j} = \frac{u(x)-u(x-\Delta{x})}{\Delta{x}} + \cal{O}\left(\Delta{x}\right) = \frac{u_{i,j}-u_{i-1,j}}{\Delta{x}} + \cal{O}\left(\Delta{x}\right) \\ \end{split}\end{equation}\]

For further details, refer to the lecture notes or see the reference below.

Staggered Finite Difference

To solve differential equations within a given domain using the finite difference method, it is first necessary to generate a numerical grid on which finite differences can be computed. The most straightforward approach is to discretize the domain using a regular, uniform grid, where the spacing between grid points is constant and all variables are defined at the same locations. Such grids are commonly used to solve equations like the Poisson equation, the heat equation, or advective transport equations.

However, in many cases, physical constraints or numerical stability requirements necessitate an alternative arrangement of variable locations. For example, solving the momentum equation with variable viscosity generally requires a fully staggered grid to ensure continuity of stress across adjacent grid points. A similar consideration applies to the temperature equation when using variable thermal conductivity.

Staggered grids also offer advantages in implementing boundary conditions. For example, with Neumann thermal boundary conditions, the heat flux across a boundary can be naturally evaluated at staggered points using so-called ghost points. These ghost points can also be employed to impose Dirichlet boundary conditions. This approach helps maintain consistent accuracy and the order of the finite difference scheme both at internal and boundary points.

For these reasons, GeoModBox.jl adopts a staggered grid for solving the temperature equation. The complete grid structure used for the governing equations in GeoModBox.jl is illustrated below:

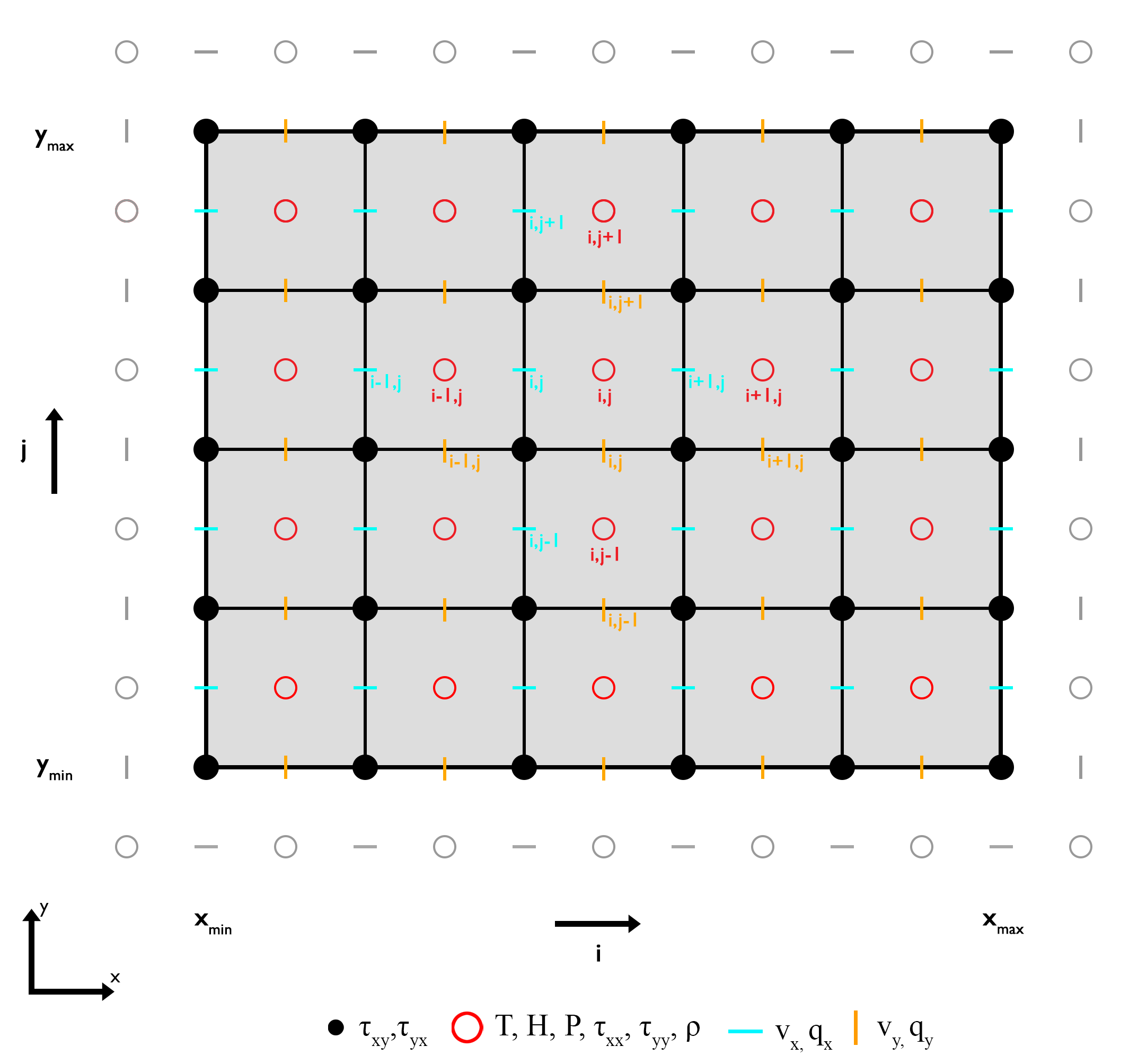

Figure 1. Staggered Finite Difference Grid used in ´GeoModBox.jl`.

Initial Conditions

Certain initial conditions and parameter structures are already defined in GeoModBox.jl and can be called using certain functions. For more details on the variable structures and functions for initial conditions please see this documentation.

Thermal convection

The equations discussed here are used to solve for pressure and velocity in two-dimensional thermal convection systems. While support for variable thermodynamic parameters—such as density ($\rho$), specific heat capacity ($c_p$), and thermal conductivity ($k$)—is forthcoming, simplifications are often employed to make the problem more tractable.

Approximations

A commonly used simplification in thermal convection modeling is the Boussinesq approximation. This approximation assumes that all thermodynamic properties remain constant, and adiabatic temperature effects are neglected in the temperature equation. Spatial density variations are assumed to be small and are only retained in the buoyancy term of the momentum equation. Under this framework, density becomes a function of temperature and is described using an equation of state.

Equation of State

Various forms of the equation of state are available. In this context, a linear approximation is used to relate density to temperature:

\[\begin{equation} \rho = \rho_0 (1-\alpha T), \end{equation}\]

where $\rho_0$ is the reference density [kg/m³], and $\alpha$ is the thermal expansion coefficient [1/K].

Substituting this relation into the buoyancy term on the right-hand side of the momentum equation and using the definition of total pressure,

\[\begin{equation} P_t = P_{\text{dyn}} + P_{\text{hydr}}, \end{equation}\]

where $P_{\text{dyn}}$ and $P_{\text{hydr}}$ denote the dynamic and hydrostatic pressure, respectively, along with the gradient of hydrostatic pressure,

\[\begin{equation} \frac{\partial{P_{\text{hydr}}}}{\partial{y}}=\rho_0 g, \end{equation}\]

yields a modified form of the $y$-component of the dimensional momentum equation.

Constitutive Relation

The constitutive equations of rheology delineate a relationship between the second-order tensor for the kinematics $\left(\text{Strain rate: }\dot{\varepsilon}, \text{Strain: } \varepsilon \right)$ and the dynamics $\left(\text{Forces}, \text{Stresses: }\sigma\right)$. Several constitutive models are commonly employed (e.g., viscous, elastic, viscoelastic, plastic). In GeoModBox.jl, the focus is on incompressible, viscous rheology, described by:

\[\begin{equation} \tau_{i,j} = 2\eta \cdot \dot{\varepsilon}_{i,j}, \end{equation}\]

where $\eta$ is the dynamic viscosity [Pa·s] and $\tau_{i,j}$ is the deviatoric stress tensor [Pa] defined as

\[\begin{equation} \tau_{i,j} = \sigma_{i,j} + P\delta{i,j}, \end{equation}\]

where $\sigma_{i,j}$ is the full stress tensor [Pa], $P$ is the pressure [Pa], and $\delta$ is the Kronecker Delta.

Governing equations

The following dimensional equations govern thermal convection under the Boussinesq approximation:

Momentum equation

$x$-component

\[\begin{equation} 0 = -\frac{\partial{P_{\text{dyn}}}}{\partial{x}}+\frac{\partial{\tau_{xj}}}{\partial{x_j}}, \end{equation}\]

$y$-component

\[\begin{equation} 0 = -\frac{\partial{P_{\text{dyn}}}}{\partial{y}}+\frac{\partial{\tau_{yj}}}{\partial{x_j}} - \rho_0 g \alpha T, \end{equation}\]

where $P_{\text{dyn}}$ is the dynamic pressure [Pa], $\tau_{ij}$ is the deviatoric stress tensor [Pa], $\rho_0$ is the reference density [kg/m³], $g$ is the gravitational acceleration [m/s²], $\alpha$ is the thermal expansion coefficient [1/K], and $T$ is the absolute temperature [K].

Temperature equation

\[\begin{equation} \left(\frac{\partial{T}}{\partial{t}} + v_j \frac{\partial{T}}{\partial{x_j}}\right) = \kappa \frac{\partial^2{T}}{\partial{x^2_i}} + \frac{Q}{\rho_0 c_p}, \end{equation}\]

where $t$ is time [s], $v_j$ is the velocity in the $j$-th direction [m/s], $\kappa = \frac{k}{\rho c_p}$ is the thermal diffusivity [m²/s], $Q$ is the volumetric heat production rate [W/m³], and $c_p$ is the specific heat capacity [J/kg/K]. For implementation details, refer to the thermal convection examples.

Continuity equation

\[\begin{equation} \frac{\partial{v_i}}{\partial{x_i}} = 0. \end{equation}\]

Scaling

In geodynamic modeling, it is common practice to non-dimensionalize the governing equations to generalize results across different physical scales and to enable experimental modeling (e.g., in laboratory settings). To non-dimensionalize equations (15)–(18), certain scaling constants are introduced and the associated scaling laws derived.

Scaling Constants

Various approaches exist for non-dimensionalization. Here, the following set of scaling constants are adopted:

\[\begin{equation}\begin{split} h_{sc} & = h, \\ t_{sc} & = \frac{h^2}{\kappa}, \\ v_{sc} & = \frac{\kappa}{h}, \\ \tau_{sc} & = \frac{\eta_0 \kappa}{h^2}, \\ T_{sc} & = \Delta{T}, \\ Q_{sc} & = \frac{\Delta{T}\kappa \rho_0 c_p}{h^2}, \end{split}\end{equation}\]

where $h$ is the model height [m], $\kappa$ is the thermal diffusivity [m²/s], $\eta_0$ is the reference viscosity [Pa·s], $\Delta T$ is the temperature difference between the top and bottom boundaries [K], $\rho_0$ is the reference density [kg/m³], and $c_p$ is the specific heat capacity [J/kg/K].

Scaling laws

These constants are applied to transform dimensional quantities into their non-dimensional counterparts (apostrophe indicates non-dimensional parameters):

\[\begin{equation}\begin{split} h & = h' \cdot h_{sc}, \\ t & = t' \cdot t_{sc}, \\ v & = v' \cdot v_{sc}, \\ \tau & = \tau' \cdot \tau_{sc}, \\ T & = T' \cdot T_{sc}, \\ Q & = Q' \cdot Q_{sc}. \end{split}\end{equation}\]

When applied, many of the constants cancel out, resulting in non-dimensional equations that structurally resemble the dimensional ones.

Note: This simplification is only valid under the assumptions and approximations discussed above. Any remaining scaling terms can often be grouped into key dimensionless parameters.

Rayleigh Number

The primary remaining dimensionless parameter is the Rayleigh number ($Ra$), which characterizes the convective behavior and replaces the buoyancy term in the momentum equation:

\[\begin{equation} Ra = \frac{\rho_0 g \alpha \Delta{T} h^3}{\eta_0 \kappa}. \end{equation}\]

Non-Dimensional Governing Equations

The non-dimensional governing equations are then defined as:

Momentum equation

$x$-component

\[\begin{equation} -\frac{\partial{P'}}{\partial{x'}}+\frac{\partial{\tau_{xj}'}}{\partial{x_j'}} = 0, \end{equation}\]

Or in terms of velocity:

\[\begin{equation} -\frac{\partial{P'}}{\partial{x'}}+2\frac{\partial}{\partial{x'}}\eta'\frac{\partial{v_x'}}{\partial{x'}}+\frac{\partial}{\partial{y'}}\eta'\left(\frac{\partial{v_x'}}{\partial{y'}}+\frac{\partial{v_y'}}{\partial{x'}}\right) = 0. \end{equation}\]

$y$-component

\[\begin{equation} -\frac{\partial{P'}}{\partial{y'}}+\frac{\partial{\tau_{yj}'}}{\partial{x_j'}} = Ra T', \end{equation}\]

Or in terms of velocity:

\[\begin{equation} -\frac{\partial{P'}}{\partial{y'}}+2\frac{\partial}{\partial{y'}}\eta'\frac{\partial{v_{y}'}}{\partial{y'}} +\frac{\partial}{\partial{x'}}\eta'\left(\frac{\partial{v_{y}'}}{\partial{x'}} + \frac{\partial{v_{x}'}}{\partial{y'}}\right) = Ra T'. \end{equation}\]

Temperature equation

\[\begin{equation} \left(\frac{\partial{T'}}{\partial{t'}} + v_j' \frac{\partial{T'}}{\partial{x_j'}}\right) = \frac{\partial^2{T'}}{\partial{x^{'2}_i}} + Q'. \end{equation}\]

Continuity equation

\[\begin{equation} \frac{\partial{v'_x}}{\partial{x}} + \frac{\partial{v'_y}}{\partial{y'}} = 0. \end{equation}\]

When interpreting or analyzing non-dimensional models, it is essential to keep track of the scaling constants and reference values used in the transformation.

Compared to the dimensional equations, the non-dimensional (scaled) forms differ only slightly in structure. As a result, the same numerical solver can be used for both dimensional and non-dimensional formulations, requiring only minimal modifications when specifying the parameters.

For an implementation example, see the thermal convection examples.
