Rayleigh Taylor Instability (RTI)
This example demonstrates the transient behavior of a well-known problem in geodynamics: the Rayleigh–Taylor instability (RTI) in a two-layered system with different densities and viscosities. The script presents the setup and dynamic evolution of an RTI, which is also used in another script within GeoModBox.jl to benchmark the solution of the momentum equation under purely density-driven conditions.
The RTI model consists of two horizontally layered materials, each characterized by specified thickness, viscosity, and density. No-slip boundary conditions are applied at the top and bottom, and symmetric velocity boundary conditions at the lateral boundaries. If the interface between the layers is perturbed (e.g., sinusoidally), the system becomes unstable. The more buoyant lower layer rises while the denser upper layer sinks, with velocities increasing over time until a new stable configuration is reached.
The initial growth rate of the instability is mainly controlled by the density contrast, as well as the perturbation’s wavelength and amplitude. This can be estimated analytically. A benchmark example therefore is given in an additional script.
In the following, the focus lies on setting up the RTI instability using tracers, solving the momentum equation, and advecting the phase field.
Let's load the required modules first.
using Plots
using ExtendableSparse
using GeoModBox
using GeoModBox.InitialCondition, GeoModBox.MomentumEquation.TwoD
using GeoModBox.AdvectionEquation.TwoD
using GeoModBox.Tracers.TwoD
using Base.Threads
using Printf, LinearAlgebraNow one can setup the parameters to define the initial phase condition unsing the tracers. These parameters are later used in the function IniTracer2D()
save_fig = 1
# Define Initial Condition ========================================== #
Ini = (p=:RTI,) # Set RTI
λ = 3.0e3 # Perturbation wavelength[ m ]
δA = 1500/15 # Amplitude [ m ]
# ------------------------------------------------------------------- #The following parameters are used for visualization.
# Plot Settings ===================================================== #
Pl = (
qinc = 4,
mainc = 2,
qsc = 100*(60*60*24*365.25)*3
)
# ------------------------------------------------------------------- #In the following the model geometry and the numerical gridding are defined. The aspect ratio and horizontal resolution of the model domain are defined by the wavelength of the perturbation.
# Geometry ========================================================== #
M = Geometry(
ymin = -3.0e3, # [ m ]
ymax = 0.0,
xmin = 0.0,
)
ar = Int64(2 * λ / (M.ymax-M.ymin)) # aspect ratio
M.xmax = (M.ymax-M.ymin)*ar
# -------------------------------------------------------------------- #
# Grid =============================================================== #
NC = (
x = 50*ar,
y = 50,
)
NV = (
x = NC.x + 1,
y = NC.y + 1,
)
Δ = GridSpacing(
x = (M.xmax - M.xmin)/NC.x,
y = (M.ymax - M.ymin)/NC.y,
)
x = (
c = LinRange(M.xmin+Δ.x/2,M.xmax-Δ.x/2,NC.x),
ce = LinRange(M.xmin - Δ.x/2.0, M.xmax + Δ.x/2.0, NC.x+2),
v = LinRange(M.xmin,M.xmax,NV.x),
)
y = (
c = LinRange(M.ymin+Δ.y/2,M.ymax-Δ.y/2,NC.y),
ce = LinRange(M.ymin - Δ.x/2.0, M.ymax + Δ.x/2.0, NC.y+2),
v = LinRange(M.ymin,M.ymax,NV.y),
)
x1 = (
c2d = x.c .+ 0*y.c',
v2d = x.v .+ 0*y.v',
vx2d = x.v .+ 0*y.ce',
vy2d = x.ce .+ 0*y.v',
)
x = merge(x,x1)
y1 = (
c2d = 0*x.c .+ y.c',
v2d = 0*x.v .+ y.v',
vx2d = 0*x.v .+ y.ce',
vy2d = 0*x.ce .+ y.v',
)
y = merge(y,y1)
# -------------------------------------------------------------------- #Next, define the physical parameters for the two layers.
# Physics ============================================================ #
g = 10.0 # Gravitational acceleration [ m/s^2 ]
# 0 - upper layer; 1 - lower layer
η₀ = 1e19 # Viscosity composition 0 [ Pa s ]
η₁ = 1e13 # Viscosity composition 1 [ Pa s]
ηᵣ = log10(η₁/η₀)
η = [η₀,η₁] # Viscosity for phases
ρ₀ = 3000.0 # Density composition 0 [ kg/m^3 ]
ρ₁ = 2900.0 # Density composition 1 [ kg/m^3 ]
ρ = [ρ₀,ρ₁] # Density for phases
phase = [0,1]
# ------------------------------------------------------------------- #For visualization purposes, a filename for the GIF animation must be defined.
# Animation and Plot Settings ======================================= #
path = string("./examples/StokesEquation/2D/Results/")
anim = Plots.Animation(path, String[] )
filename = string(Ini.p,"_ηr_",round(ηᵣ),
"_tracers_DC")
# ------------------------------------------------------------------- #Since the energy equation is not solved, fewer data fields need to be initialized. The momentum equation is solved using the defect correction method. Therefore the strain rate and stress components are requirerd as well.
# Allocation ======================================================== #
D = (
ρ = zeros(Float64,(NC...)),
p = zeros(Float64,(NC...)),
cp = zeros(Float64,(NC...)),
vx = zeros(Float64,(NV.x,NV.y+1)),
vy = zeros(Float64,(NV.x+1,NV.y)),
Pt = zeros(Float64,(NC...)),
vxc = zeros(Float64,(NC...)),
vyc = zeros(Float64,(NC...)),
vc = zeros(Float64,(NC...)),
wt = zeros(Float64,(NC.x,NC.y)),
wtv = zeros(Float64,(NV.x,NV.y)),
ηc = zeros(Float64,NC...),
ηv = zeros(Float64,NV...),
)
# ------------------------------------------------------------------- #
# Needed for the defect correction solution ---
divV = zeros(Float64,NC...)
ε = (
xx = zeros(Float64,NC...),
yy = zeros(Float64,NC...),
xy = zeros(Float64,NV...),
)
τ = (
xx = zeros(Float64,NC...),
yy = zeros(Float64,NC...),
xy = zeros(Float64,NV...),
)
# ------------------------------------------------------------------- #No-slip velocity boundary conditions are applied at the top and bottom, and free-slip conditions along the lateral boundaries.
# Boundary Conditions =============================================== #
VBC = (
type = (E=:freeslip,W=:freeslip,S=:noslip,N=:noslip),
val = (E=zeros(NV.y),W=zeros(NV.y),S=zeros(NV.x),N=zeros(NV.x)),
)
# ------------------------------------------------------------------- #The number of time steps is arbitrarily limited to a maximum of 50 iterations. This enables the rise of multiple dikes without reaching a full overturn of the system.
# Time ============================================================== #
T = TimeParameter(
tmax = 4500.0, # [ Ma ]
Δfacc = 1.0, # Courant time factor
itmax = 50, # Maximum iterations; 30000
)
T.tmax = T.tmax*1e6*T.year # [ s ]
T.Δ = T.Δfacc * minimum((Δ.x,Δ.y)) /
(sqrt(maximum(abs.(D.vx))^2 + maximum(abs.(D.vy))^2))
Time = zeros(T.itmax)
# ------------------------------------------------------------------- #In the following the tracers are initialized.
# Tracer Advection ================================================== #
nmx,nmy = 5,5
noise = 0
nmark = nmx*nmy*NC.x*NC.y
Aparam = :phase
MPC = (
c = zeros(Float64,(NC.x,NC.y)),
v = zeros(Float64,(NV.x,NV.y)),
th = zeros(Float64,(nthreads(),NC.x,NC.y)),
thv = zeros(Float64,(nthreads(),NV.x,NV.y)),
)
MPC1 = (
PG_th = [similar(D.ρ) for _ = 1:nthreads()], # per thread
PV_th = [similar(D.ηv) for _ = 1:nthreads()], # per thread
wt_th = [similar(D.wt) for _ = 1:nthreads()], # per thread
wtv_th = [similar(D.wtv) for _ = 1:nthreads()], # per thread
)
MPC = merge(MPC,MPC1)
Ma = IniTracer2D(Aparam,nmx,nmy,Δ,M,NC,noise,Ini.p,phase;λ,δA)
# RK4 weights ---
rkw = 1.0/6.0*[1.0 2.0 2.0 1.0] # for averaging
rkv = 1.0/2.0*[1.0 1.0 2.0 2.0] # for time stepping
# Count marker per cell ---
CountMPC(Ma,nmark,MPC,M,x,y,Δ,NC,NV,1)
# Interpolate from markers to cell ---
Markers2Cells(Ma,nmark,MPC.PG_th,D.ρ,MPC.wt_th,D.wt,x,y,Δ,Aparam,ρ)
Markers2Cells(Ma,nmark,MPC.PG_th,D.p,MPC.wt_th,D.wt,x,y,Δ,Aparam,phase)
Markers2Vertices(Ma,nmark,MPC.PV_th,D.ηv,MPC.wtv_th,D.wtv,x,y,Δ,Aparam,η)
@. D.ηc = 0.25 * (D.ηv[1:end-1,1:end-1] +
D.ηv[2:end-0,1:end-1] +
D.ηv[1:end-1,2:end-0] +
D.ηv[2:end-0,2:end-0])
# ------------------------------------------------------------------- #To solve the linear system of equations, one needs to defined the numbering of the unknowns and initialize the residual and the correction term arrays.
# System of Equations =============================================== #
# Iterations
niter = 10
ϵ = 1e-8
# Numbering, without ghost nodes! ---
off = [ NV.x*NC.y, # vx
NV.x*NC.y + NC.x*NV.y, # vy
NV.x*NC.y + NC.x*NV.y + NC.x*NC.y] # Pt
Num = (
Vx = reshape(1:NV.x*NC.y, NV.x, NC.y),
Vy = reshape(off[1]+1:off[1]+NC.x*NV.y, NC.x, NV.y),
Pt = reshape(off[2]+1:off[2]+NC.x*NC.y,NC...),
)
δx = zeros(maximum(Num.Pt))
F = zeros(maximum(Num.Pt))
# Residuals ---
Fm = (
x = zeros(Float64,NV.x, NC.y),
y = zeros(Float64,NC.x, NV.y)
)
FPt = zeros(Float64,NC...)
# ------------------------------------------------------------------- #Now, the time loop can be started.
# Time Loop ========================================================= #
for it = 1:T.itmax
# Update Time ---
if it > 1
Time[it] = Time[it-1] + T.Δ
end
@printf("Time step: #%04d, Time [Myr]: %04e\n ",it,
Time[it]/(60*60*24*365.25)/1.0e6)An initial guess is provided for the momentum equation, and residuals are computed iteratively. Within the defect correction method, the coefficient matrix is assembled to calculate the correction term for the initial guess.
# Momentum Equation ===
# Initial Residual ---------------------------------------------- #
D.vx .= 0.0
D.vy .= 0.0
D.Pt .= 1.0
for iter=1:niter
Residuals2D!(D,VBC,ε,τ,divV,Δ,D.ηc,D.ηv,g,Fm,FPt)
F[Num.Vx] = Fm.x[:]
F[Num.Vy] = Fm.y[:]
F[Num.Pt] = FPt[:]
@printf("||R|| = %1.4e\n", norm(F)/length(F))
norm(F)/length(F) < ϵ ? break : nothing
# Assemble Coefficients ========================================= #
K = Assembly(NC, NV, Δ, D.ηc, D.ηv, VBC, Num)
# --------------------------------------------------------------- #
# Solution of the linear system ================================= #
δx = - K \ F
# --------------------------------------------------------------- #
# Update Unknown Variables ====================================== #
D.vx[:,2:end-1] .+= δx[Num.Vx]
D.vy[2:end-1,:] .+= δx[Num.Vy]
D.Pt .+= δx[Num.Pt]
end
# --------------------------------------------------------------- #For visualization, the centroid velocity field is computed. The density, marker distribution, absolut velocity and centroid viscosity is plotted for certain time steps. Depending on the parameter save_fig the plot is displayed or stored to generate a gif animation.
# --------------------------------------------------------------- #
# Get the velocity on the centroids ---
for i = 1:NC.x
for j = 1:NC.y
D.vxc[i,j] = (D.vx[i,j+1] + D.vx[i+1,j+1])/2
D.vyc[i,j] = (D.vy[i+1,j] + D.vy[i+1,j+1])/2
end
end
@. D.vc = sqrt(D.vxc^2 + D.vyc^2)
# ---
@show(minimum(D.vc))
@show(maximum(D.vc))
# ---
if Time[it] >= T.tmax
it = T.itmax
end
# ---
if mod(it,2) == 0 || it == T.itmax || it == 1
p = heatmap(x.c./1e3,y.c./1e3,D.ρ',color=:inferno,
xlabel="x[km]",ylabel="y[km]",colorbar=true,
title="ρ",
aspect_ratio=:equal,xlims=(M.xmin/1e3, M.xmax/1e3),
ylims=(M.ymin/1e3, M.ymax/1e3),
layout=(2,2),subplot=1)
scatter!(p,Ma.x[1:Pl.mainc:end]./1e3,Ma.y[1:Pl.mainc:end]./1e3,
ms=1,ma=0.5,mc=Ma.phase[1:Pl.mainc:end],markerstrokewidth=0.0,
xlabel="x[km]",ylabel="y[km]",colorbar=true,
title="tracers",label="",
aspect_ratio=:equal,xlims=(M.xmin/1e3, M.xmax/1e3),
ylims=(M.ymin/1e3, M.ymax/1e3),
layout=(2,2),subplot=2)
heatmap!(p,x.c./1e3,y.c./1e3,D.vc',
xlabel="x[km]",ylabel="y[km]",colorbar=true,
title="V_c",color=cgrad(:batlow),
aspect_ratio=:equal,xlims=(M.xmin/1e3, M.xmax/1e3),
ylims=(M.ymin/1e3, M.ymax/1e3),
layout=(2,2),subplot=4)
quiver!(p,x.c2d[1:Pl.qinc:end,1:Pl.qinc:end]./1e3,
y.c2d[1:Pl.qinc:end,1:Pl.qinc:end]./1e3,
quiver=(D.vxc[1:Pl.qinc:end,1:Pl.qinc:end].*Pl.qsc,
D.vyc[1:Pl.qinc:end,1:Pl.qinc:end].*Pl.qsc),
la=0.5,color="white",layout=(2,2),subplot=4)
heatmap!(p,x.c./1e3,y.c./1e3,log10.(D.ηc'),color=reverse(cgrad(:roma)),
xlabel="x[km]",ylabel="y[km]",title="η_c",
clims=(15,27),
aspect_ratio=:equal,xlims=(M.xmin/1e3, M.xmax/1e3),
ylims=(M.ymin/1e3, M.ymax/1e3),colorbar=true,
layout=(2,2),subplot=3)
if save_fig == 1
Plots.frame(anim)
elseif save_fig == 0
display(p)
end
end
if Time[it] >= T.tmax
break
endSince only the momentum and mass conservation equations are solved, the maximum time step is fully governed by the Courant criterium.
# Calculate Time Stepping ---
T.Δ = T.Δfacc * minimum((Δ.x,Δ.y)) /
(sqrt(maximum(abs.(D.vx))^2 + maximum(abs.(D.vy))^2))
if Time[it] > T.tmax
T.Δ = T.tmax - Time[it-1]
Time[it] = Time[it-1] + T.Δ
it = T.itmax
endNow, one can advect the phases on the tracers using the staggered velocity field and Runge-Kutta 4th order. Following the advection, the information on the centroids and vertices is updated from the markers.
# Advection ===
# Advect tracers ---
@printf("Running on %d thread(s)\n", nthreads())
AdvectTracer2D(Ma,nmark,D,x,y,T.Δ,Δ,NC,rkw,rkv,1)
CountMPC(Ma,nmark,MPC,M,x,y,Δ,NC,NV,it)
# Interpolate phase from tracers to grid ---
Markers2Cells(Ma,nmark,MPC.PG_th,D.ρ,MPC.wt_th,D.wt,x,y,Δ,Aparam,ρ)
Markers2Cells(Ma,nmark,MPC.PG_th,D.p,MPC.wt_th,D.wt,x,y,Δ,Aparam,phase)
Markers2Vertices(Ma,nmark,MPC.PV_th,D.ηv,MPC.wtv_th,D.wtv,x,y,Δ,Aparam,η)
@. D.ηc = 0.25 * (D.ηv[1:end-1,1:end-1] +
D.ηv[2:end-0,1:end-1] +
D.ηv[1:end-1,2:end-0] +
D.ηv[2:end-0,2:end-0])
end # End Time LoopFinally, the gif animation is generated.
# Save Animation ---
if save_fig == 1
# Write the frames to a GIF file
foreach(rm, filter(startswith(string(path,"00")), readdir(path,join=true)))
end

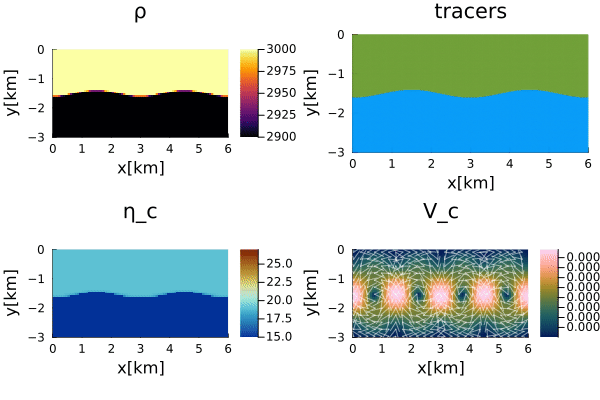

Figure 1. Rayleigh–Taylor Instability. Transient evolution of a two-layer system with a density contrast of 100 kg/m³ and a viscosity contrast spanning six orders of magnitude. Panels show: density (top left), tracer distribution (top right), centroid viscosity (bottom left), and absolute centroid velocity (bottom right).
